Description

Builder: Van Dam Nordia Jachten. Built: Holland in 1997. Flag: Turkey. CE Class No. 0164, Category A for Unlimited Ocean Voyages. Aluminium Hull. Perkins 135 HP model M135. Sloop Rig with 3 hydraulic headsails. Entire inside of the vessel air conditioned – 2 unit for master cabin and saloon and also heated with Diesel webasto cabin heater. Master cabin located Aft with En-suite Toilet and shower. Double berth in Master located port side of hull (not at middle). 2 forward cabins, both with bunks 2 single, shared forward headroom. U Shape settee in Saloon around dining table.

Specifications

Accommodation

Cabins & Galley
Entire inside of the vessel air conditioned – 2 unit for master cabin and saloon and also heated with Diesel webasto cabin heater
Master cabin located Aft with En-suite Toilet and shower
Double berth in Master located port side of hull (not at middle)
2 forward cabins, both with bunks 2 single, shared forward headroom

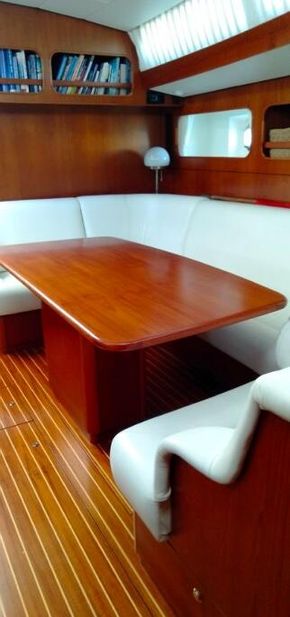

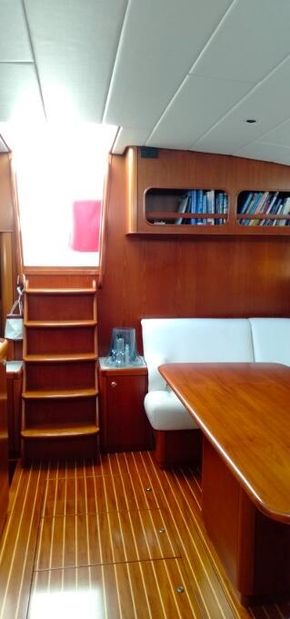

U Shape settee in Saloon around dining table

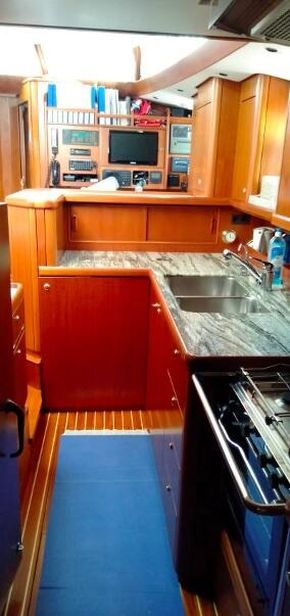

Galley Located to passage
Large Fridge
Dual Sink
Pressurised hot and cold water
Manual operated sea water tap
3 Burner Gas cooker and oven
Microwave oven

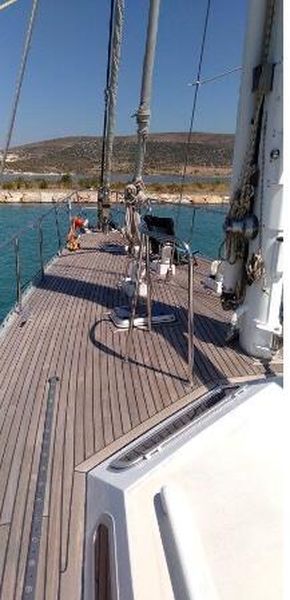

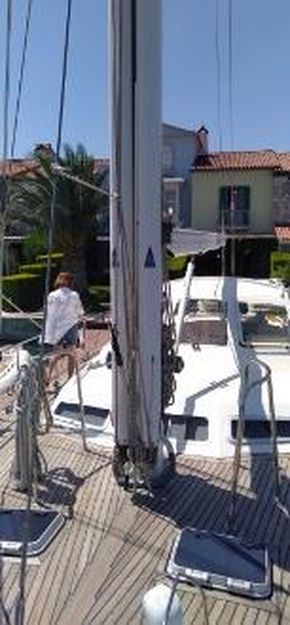

Teak Deck with new caulking September 2020
Teak Cock Pit Table

Construction

Flag: Turkey
Hull No. 1069 & Designer Robert W. Van Dam
High Grade Marine Seawater Resistant Aluminium alloy AIMg4Mn (5083) welding work X RAYED accordingly the rules of Classification Societies
Keel Ballast 9000 kg LEAD
8 mm thickness hull 5 mm thickness superstructure
Hard Top additional cover
Full Sun Awning from boom to back stays
Mooring lines

Equipment

Ultra stainless steel 60 kg main anchor
115 m Kromax duplex special anchor
Bugel Anchor 52 kg with chain as spare anchor
Fortress Alloy anchor with special 20 m extra heavy chain and 100 m rope
Stainless steel ultra kg anchor
Various ropes
Hoses
Deck hooks

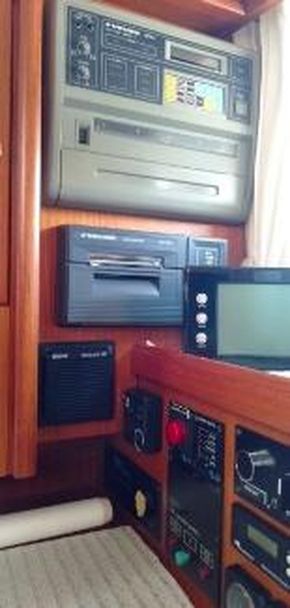

Navigation Equipment

Inside Nav Table
Battery State Monitoring
Furuno D Fax
Furuno Navtex NX 500
MK 10 GPS

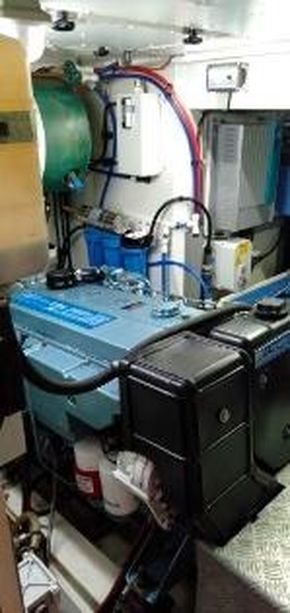

Engine(s)

Perkins 135 HP model M135 @ 2020 August running 3300 hrs
Onan 13.5 Kw diesel generator MDKAL
3 blade fixed propeller
Closed oil seal system for stern tube sealing and protection (dripless)
Hydraulic Lewmar Vertical windlass operated with engine driven hydraulic power pack
Hydraulic Bow Thruster operated with engine driven power pack /3 bladed bronze propeller
Sea Recovery Aqua Compact 100 litre / hour
Holding tank 300 + 100 for blackwater

Sails & Spars

Rig
Hall Spars Aluminium White Painted Spars and Boom
Sloop Rig with 3 hydraulic headsails
Forestay and inner stay ROD-30
Standing Rigging and aft stay 12 mm Dyform
In mast Furling (hydraulic)
Mainsail 67 sqm & Genoa (Yankee) 96 sqm & Staysail 28 sqm & Light air Genoa 126 sqm
All Sails from 2014 all in very good condition @ August 2020
Headsails furling all Hydraulic by Reckmann RF90 profile R40 TOTAL 3 of
2 Spinnaker poles
Hydraulic back stay tensioner HOLMATR
6 of Lewmar Hydraulic self- tailing winches in cock pit
2 of Lewmar 44 CST on mast
1 of Andersen for Spinnaker on the mast

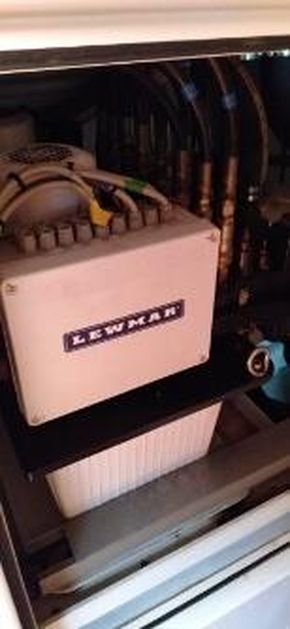

Hydraulic winches operated 12 V Lewmar power pack
GENOA & STAYSAIL & MAINSAIL from 2014 by UK Sail
Original HOOD total 4 sails available
Spinnaker

Electronics

Autohelm Depth & Speed & Nav Data
Autohelm wind speed and direction
Autohelm ST7000 autopilot
Ray marine E120 Chart-plotter and Radar display
Electronic Hull Installation Control Unit
B&G VHF
VHF DS Receiver
Sony CD Player
Autohelm Multi Display
Samsung Repeater screen
Sailor Compact VHF Radio SSB

Safety Equipment

Retractable Dinghy Davits with Lewmar lifting winches
Life raft
Life Jackets
Honda Outboard
3 m dinghy Joker boat with GRP floor RIB

Disclaimer

The particulars and specifications are supplied by the vendor and not SeaBoats. Such information has not been verified and may be incorrect. Please do not rely on particulars and specifications unless you have verified their accuracy.
